Carbon Medium Wave Infrared Heater

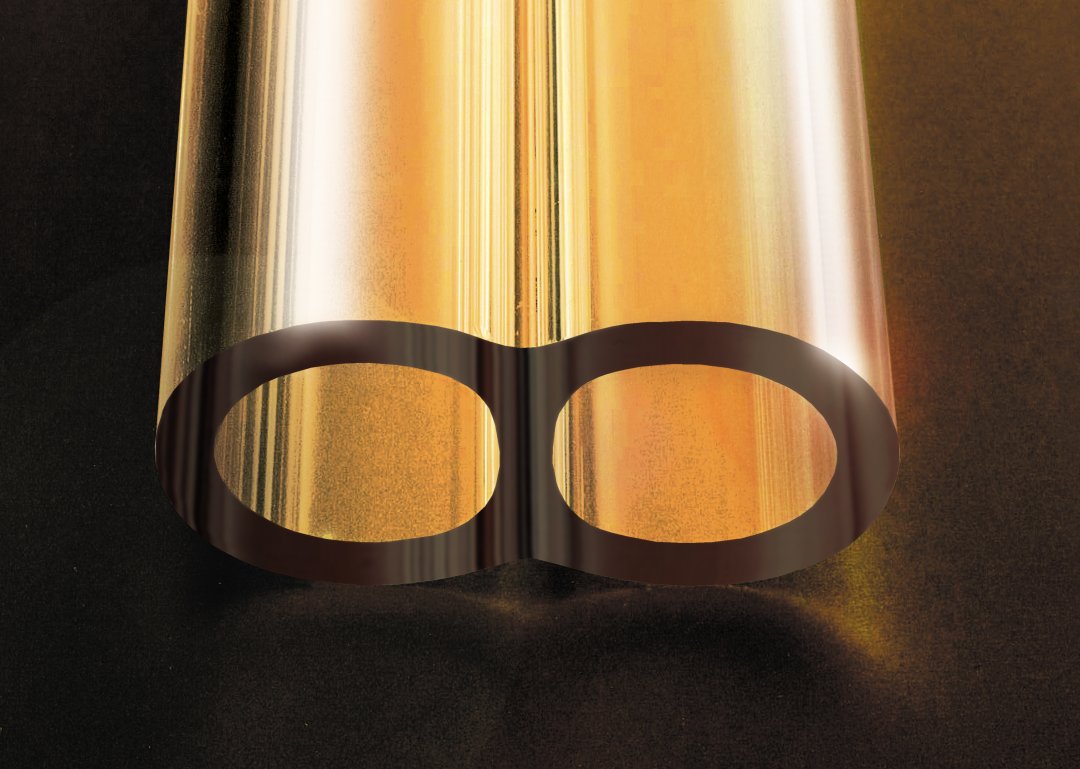

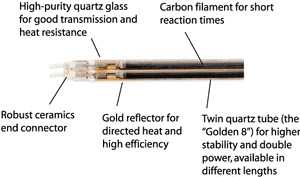

Heraeus Carbon IR heaters have a unique filament design that combines the versatile medium-wave spectral emission with very short reaction times of just seconds. They are made with high-quality quartz tubes and gold reflectors for high efficiency. The unique Heraeus Twin Tube design (the "Golden 8") gives them higher power densities and good mechanical stability. Round tube designs are also available.

Heraeus Carbon IR heaters are also available as complete IR systems.



Heater features:



Technical data:

  Carbon Twin Tube IR heater Carbon Round Tube IR heater
Power density 80 W/ cm 40 W/ cm
Max. heated length 3000 mm 1500 mm
Cross section 34 x14 mm 19 mm
Filament temperature 1200 °C 1200 °C
Peak wavelength 2 µm 2 µm
Max. power 150 kW/m2 100 kW/m2
Response time 1-2 sec 1-2 sec



Further information:

Product information Carbon IR heaters (PDF 0.2 MB)
